Zcl

Basic Info.

Model NO.	ZCL-4X1600
Warranty	12 Months
Customized	Customized
Advantage	Use Widely
Condition	New
Line Speed	60m/Min
Coil Weight	25 Tons
Leveling Accuracy	1mm/M2
Option	Film Applicator, Stick Paper Machine
Colour	Customized
Equipment Colour	Customized
Finished Length	5000mm
Diagonal Accuracy	0.5mm
Length Accuracy	0.3mm
Material Width	1600mm
Material Thickness	0.5-4mm
Transport Package	Seaworthy
Specification	30m L X 10m W
Trademark	ZeYe
Origin	China
HS Code	84623120
Production Capacity	60

Product Description

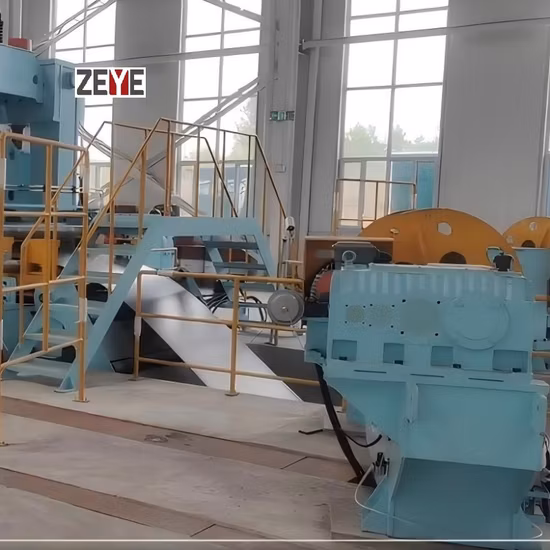

Cut to length line ZCL series
Cut to length line is mainly used for jobs like uncoiling, leveliing, measuring, cutting to length and stacking of kinds of materials, such as cold rolled or hot rolled plate, electrolytic galvanized plate, hot dip galvanized plate, color-coated plate, stainless steel plate, aluminum plate, cooper plate etc.
Main Units

1	Entry coil car	1 set
2	Uncoiler	1 set
3	Feeding device	1 set
4	Precision leveler	1 set
5	Looper	1 set
6	Side guide	2 sets
7	Servo measure the length	1 set
8	Shear	1 set
9	Conveyor belt	1 set
10	Stacker	1 set
11	Blower	1 set
12	Exit coil car	1 set
13	Hydraulic system	1 set
14	Electrical system	1 set

Main Technical Parameters

Model	ZCL-1	ZCL-2	ZCL-3	ZCL-4
Material thickness	0.2-1.0mm	0.3-2.0 mm	0.4-3.0 mm	0.5-4.0 mm
Material width	300-1250 mm	300-1600 mm	300-1800 mm	300-1800 mm
Finished length	300-3000 mm	300-3000 mm	300-4000 mm	400-6000 mm
Length accuracy	<±0.3 mm	<±0.3 mm	<±0.3 mm	<±0.3 mm
Diagonal accuracy	<±0.5 mm	<±0.5 mm	<±0.5 mm	<±0.5 mm
Leveling accuracy	<1 mm/m2	<1 mm/m2	<1 mm/m2	<1 mm/m2
Line speed	70 m/min	60 m/min	60 m/min	60 m/min
Coil weight	5,10,15 t	10,15,20 t	15,15,20 t	20,25,30 t

Our advantages
1. Our parts of equipment are produced by Japan MAZAK, Spain CORREA cnc etc. the world class the most advancedprocessing equipments. Which can ensure to produce out high precision parts.

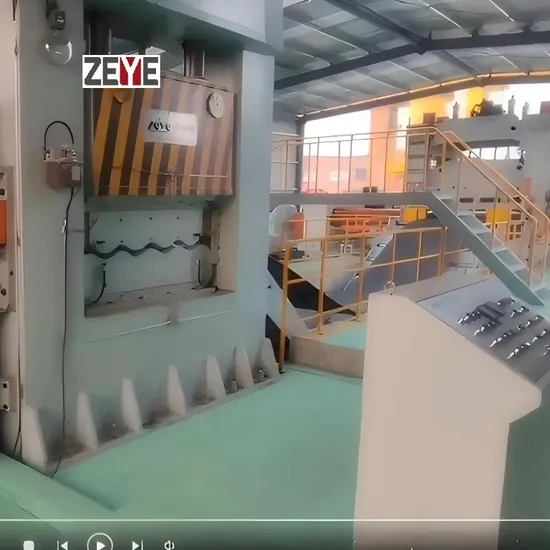

Zcl-4X1600 Stainless Steel Cut to Length Machine Line for Roll Mill, Hf Tube Mill, Cold Forming Machines

2 Every part has been finished it's own complete technology process, such as forge, rough machined, heat treatment, cooling, burring, tempering, finish turning , milling, drill, thread tapping, match pin, surface quenching,coat the anti-rust oil, fine grinding, test ,entry warehouse, which ensure every part meets it's the best performance.
3.Strictly inspection every section during production and assembly process, to ensure every part to be used is qualified.

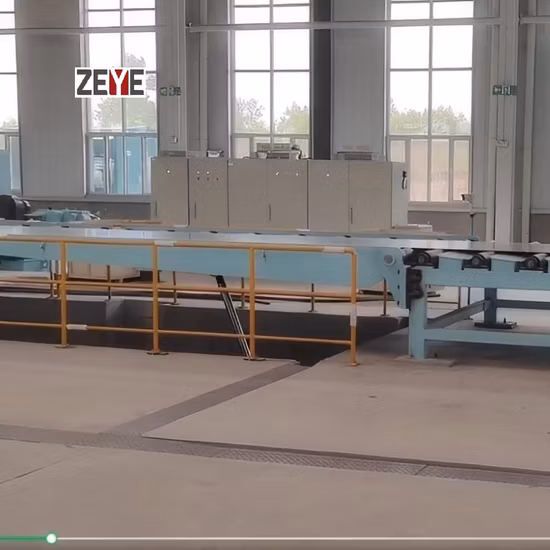

Zcl-4X1600 Stainless Steel Cut to Length Machine Line for Roll Mill, Hf Tube Mill, Cold Forming Machines

Packing and Delivery
Part of our customers
Due to enjoy the high reputation of our shearing products, we have supply our cutting lines to POSCO, BAOSTELL, MA STEEL,ANSTEEL, DELONG STEE, SHAN STEEL,SINOTRUCK, CRRC, CHERY, CHANGFENG MOTOR, HRA ,OBON,SIEMENS, MCC, BOSCH, SANDEN etc. famous companies.

Zcl-4X1600 Stainless Steel Cut to Length Machine Line for Roll Mill, Hf Tube Mill, Cold Forming Machines

Company introduction

Zcl-4X1600 Stainless Steel Cut to Length Machine Line for Roll Mill, Hf Tube Mill, Cold Forming Machines

Shandong Zetian CNC Machine Tool Co., Ltd (short for Zetian )and Jinan ZeYe Machine Tool Co., Ltd (short for ZeYe) are brother enterprises. Zetian is for import and export business, ZeYe is one professional manufactory, was founded in 1997 in Jinan city, Shandong Province, China. ZeYe is mainly engaged in developing ,manufacturing and sales of Cut to Length Line, Slitting Line, Rotary Shear, Moving Shear, Slitting and Cut to Length Combined Line, Leveling Machine. Our products are widely used in plate processing, household appliance, automobiles, pipe mill, mechanical, hardware etc. industries. It could be application for processing cold and hot rolled steel, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel, aluminum, copper and other metals.We have one professional technical team and after sales service team, we are ready to serve you at any time.Welcome to visit our factory.
FAQ Q: Could you produce the shear line as per our specific requirements? A: Yes, we are a professional manufacturer specialized in automatic shearing line
for 23 years, we have a strong design & technical team, we can design and manufacture as your requirements. Q: How to get an accurate quotation ?
A: Please provide us the detailed requirements, such as coil weight, material, width, shearing length, processing precision etc. Q: What's the MOQ, warranty... ... A: MOQ: 1 set.Warranty: 12 months after the equipment run normally .
